Schneider Kreuznach Vintage Lens Data
If, like me, you spend too much time and money on old large format lenses you may be frustrated that the data that used to be hosted on the Schneider Optics site has disappeared. The URL now redirects to https://schneiderkreuznach.com/ I've looked around but can only find the data on the Internet Archives Wayback Machine where it is slower and trickier to access.
For your convenience and mind I therefore wrote a script and did some data knitting to create this single web page with all the old data on it. I expect someone will tell me this data is available somewhere else and I've wasted my time but it was only a couple of hours and is done now. Just search this page for the lens you are looking for.
Update: You may be interested in my lens coverage app based on this data.
I don't believe it is possible to copyright specifications within the EU so I am free to do this. I also don't believe Scheinder would mind - but guys if you do please let me know and I'll take it down.
Angulon
Introduced in 1930, the Angulon is the original Schneider wide-angle lens. It is a 6-element, 2-group, symmetric design. Compared to many modern wide angles, these lenses are quite compact, although the angle of coverage is only 80°. They are well color-corrected and the symmetrical design results in excellent close up performance.
Source
Angulon 6.8/65mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 2 |
| Shutter Size |
00 |
| Flange Focal Distance |
63.5mm |
| Filter Mounting Thread |
M 30.5 X 0.5 |
| Weight (with shutter) |
80g |
| Overall Length |
21mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
65 X 90 mm |
| Image Circle Diameter at f/16 |
109mm |
| Angle of View at f/16 |
81 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
13/11mm |
| 65 X 90 mm ; 58.2 X 81 mm |
8/6mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
64.5mm |
| Back Focal Length (S'F') |
60.3mm |
| Principal Point Separation (HH') |
2.0mm |
Source
Angulon 6.8/90mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 2 |
| Shutter Size |
0 |
| Flange Focal Distance |
90mm |
| Filter Mounting Thread |
M 40.5 X 0.5 |
| Weight (with shutter) |
130g |
| Overall Length |
25mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm |
| Image Circle Diameter at f/16 |
154mm |
| Angle of View at f/16 |
81 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
40/35mm |
| 65 X 90 mm ; 58.2 X 81 mm |
36/30mm |
| 90 X 120 mm ; 83.5 X 114 mm |
10/8mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
90.4mm |
| Back Focal Length (S'F') |
84.7mm |
| Principal Point Separation (HH') |
2.7mm |
Source
Angulon 6.8/120mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 2 |
| Shutter Size |
I |
| Flange Focal Distance |
121mm |
| Filter Mounting Thread |
M 49 X 0.75 |
| Weight (with shutter) |
225g |
| Overall Length |
30mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
130 X 180 mm |
| Image Circle Diameter at f/16 |
211mm |
| Angle of View at f/16 |
83 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 65 X 90 mm ; 58.2 X 81 mm |
68/61mm |
| 90 X 120 mm ; 83.5 X 114 mm |
47/40mm |
| 4 X 5" ; 94.4 X 120.3 mm |
34/28mm |
| 5 X 7" ; 118.8 X 167 mm |
5/4mm |
| 130 X 180 mm ; 122 X 172 mm |
_ |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
119mm |
| Back Focal Length (S'F') |
112mm |
| Principal Point Separation (HH') |
3.6mm |
Source
Angulon 6.8/165mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 2 |
| Shutter Size |
II 5/2 |
| Flange Focal Distance |
166mm |
| Filter Mounting Thread |
M 58 X 0.75 |
| Weight (with shutter) |
310g |
| Overall Length |
35mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
180 X 240 mm |
| Image Circle Diameter at f/16 |
300mm |
| Angle of View at f/16 |
84 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
97/87mm |
| 4 X 5" ; 94.4 X 120.3 mm |
82/70mm |
| 5 X 7" ; 118.8 X 167 mm |
65/55mm |
| 130 X 180 mm ; 122 X 172 mm |
62/51mm |
| 180 X 240 mm ; 172 X 232 mm |
9/7mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
167mm |
| Back Focal Length (S'F') |
154mm |
| Principal Point Separation (HH') |
4.5mm |
Source
Angulon 6.8/210mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 2 |
| Shutter Size |
III 7 |
| Flange Focal Distance |
213mm |
| Filter Mounting Thread |
M 67 X 0.75 |
| Weight (with shutter) |
475g |
| Overall Length |
48mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
240 X 300 mm |
| Image Circle Diameter at f/16 |
382mm |
| Angle of View at f/16 |
85 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 180 X 240 mm ; 172 X 232 mm |
65/54mm |
| 8 X 10" ; 194.7 X 243.2 mm |
60/49mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
208mm |
| Back Focal Length (S'F') |
196mm |
| Principal Point Separation (HH') |
6.2mm |
M-Componon
The M-Componon is a special-purpose large format macro lens, designed for greater than 1:1 reproduction. The lenses are intended for use with 6×9 cm, 4×5 inch, and 5×7 inch formats.
Source
M-Componon 4/28mm
Minimum Magnifications for negative sizes (mm x mm)
| Lens |
65 x 90 |
90 x 120 |
130 x 180 |
| M-Componon 28mm/4.0 |
3.6x |
5.1x |
7.4x |
| M-Componon 50mm/4.0 |
1.8x |
2.3x |
3.5x |
| M-Componon 80mm/4.0 |
1.0x |
1.2x |
1.9x |
Engraved Apertures
| Engraved Aperture |
Relative Aperture |
| 1 |
f/4.0 |
| 2 |
f/5.6 |
| 4 |
f/8 |
| 8 |
f/11 |
| 16 |
f/16 |
| 32 |
f/32 |
Depth of Field in mm
| Reproduction Ratio |
Engraved Apertures |
|
|
|
|
|
| 1 |
2 |
4 |
8 |
16 |
32 |
|
| 1:1 |
1.6 |
2.2 |
3.2 |
4.4 |
6.4 |
8.8 |
| 1.5:1 |
0.9 |
1.2 |
1.8 |
2.4 |
3.6 |
4.9 |
| 2:1 |
0.6 |
0.8 |
1.2 |
1.7 |
2.4 |
3.3 |
| 2.5:1 |
0.4 |
0.6 |
0.9 |
1.2 |
1.8 |
2.5 |
| 3:1 |
0.4 |
0.5 |
0.7 |
1.0 |
1.4 |
2.0 |
| 4:1 |
0.3 |
0.4 |
0.5 |
0.7 |
1.0 |
1.4 |
| 5:1 |
0.2 |
0.3 |
0.4 |
0.5 |
0.8 |
1.1 |
| 6:1 |
0.2 |
0.2 |
0.3 |
0.4 |
0.6 |
- |
| 7:1 |
0.1 |
0.2 |
0.3 |
0.4 |
0.5 |
- |
| 8:1 |
0.1 |
0.2 |
0.2 |
0.3 |
0.5 |
- |
| 10:1 |
0.1 |
0.1 |
0.2 |
0.2 |
- |
- |
| 12:1 |
0.1 |
0.1 |
0.1 |
0.2 |
- |
- |
| 16:1 |
0.1 |
0.1 |
0.1 |
- |
- |
- |
| 20:1 |
0.0 |
0.1 |
- |
- |
- |
- |
Optical Data
|
|
|
|
|
Object field for negative size |
|
|
| Reproduction Ratio |
Flange Focal Distance |
Subject to Film Distance |
Working Distance |
Multiplying factor for exposure time |
65x90 |
90x120 |
130x180 |
| 4:1 |
140 |
181 |
21.3 |
25 |
14.5x20.3 |
- |
- |
| 6:1 |
199 |
238 |
18.8 |
50 |
9.7x13.5 |
13.8x19.0 |
- |
| 8:1 |
258 |
295 |
17.6 |
80 |
7.2x10.1 |
10.4x14.3 |
15.2x21.4 |
| 10:1 |
317 |
354 |
16.9 |
120 |
5.8x8.1 |
8.3x11.4 |
12.2x17.1 |
| 12:1 |
378 |
412 |
16.4 |
170 |
4.8x6.7 |
6.9x9.5 |
10.2x14.2 |
| 16:1 |
494 |
530 |
15.7 |
300 |
3.6x5.1 |
5.2x7.1 |
7.6x10.7 |
| 20:1 |
612 |
647 |
15.4 |
440 |
2.9x4.0 |
4.2x5.7 |
6.1x8.5 |
Super-Angulon
These are wide-angle lenses of modern design which have substantially greater coverage than the Angulons. The f/4 lenses give 95° of coverage, the f/8 lens series gives 100° coverage, and the f/5.6 lenses give a 105° coverage. The f/4 and f/5.6 lenses are 8-element, 4-group designs. The f/8 lenses are 6-element in 4 groups. Super-Angulons have been multicoated. since the late 70s.
Source
Super-Angulon 4/53mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
8, 4 |
| Shutter Size |
0 |
| Flange Focal Distance |
70.2mm |
| Filter Mounting Thread |
M 67 X 0.75 |
| Weight (with shutter) |
465g |
| Overall Length |
104mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
56 X 72 mm |
| Image Circle Diameter at f/16 |
115mm |
| Angle of View at f/16 |
95 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
16.8/14.2mm |
| 65 X 90 mm ; 58.2 X 81 mm |
11.7/9.1mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
52.7mm |
| Back Focal Length (S'F') |
24.2mm |
| Principal Point Separation (HH') |
47.7mm |
Source
Super-Angulon 5.6/47mm
Stats in Copal Shutter
OPTO-MECHANICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Lens elements, Groups |
8, 4 |
8, 4 |
| Shutter Size |
00* |
0 |
| Flange Focal Distance |
51.6mm |
52.2mm |
| Filter Mounting Thread |
M 49 X 0.75 |
M 49 X 0.75 |
| Weight (with shutter) |
165g |
235g |
| Overall Length |
51.3mm |
54.7mm |
| ##### *Compur 00 |
|
|
IMAGE DATA
(with lens focused at infinity)
|
Coated |
MC |
| Recommended Format (negative) Size |
65 X 90 mm |
65 X 90 mm |
| Image Circle Diameter at f/22 |
123mm |
123mm |
| Angle of View at f/22 |
105 degrees |
105 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
_ |
| 56 X 72 mm ; 56 X 72 mm |
21.9/18.8mm |
21/18mm |
| 65 X 90 mm ; 58.2 X 81 mm |
17.2/13.7mm |
17/13mm |
OPTICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Effective Focal Length (F') |
47.2mm |
47.5mm |
| Back Focal Length (S'F') |
32mm |
30.8mm |
| Principal Point Separation (HH') |
18.3mm |
20.8mm |
Source
Super-Angulon 5.6/65mm
Stats in Copal Shutter
OPTO-MECHANICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Lens elements, Groups |
8, 4 |
8, 4 |
| Shutter Size |
0 |
0 |
| Flange Focal Distance |
71mm |
72.5mm |
| Filter Mounting Thread |
M 67 X 0.75 |
M 67 X 0.75 |
| Weight (with shutter) |
323g |
380g |
| Overall Length |
69mm |
78mm |
IMAGE DATA
(with lens focused at infinity)
|
Coated |
MC |
| Recommended Format (negative) Size |
65 X 90 mm |
65 X 90 mm |
| Image Circle Diameter at f/22 |
170mm |
170mm |
| Angle of View at f/22 |
105 degrees |
105 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
_ |
| 56 X 72 mm ; 56 X 72 mm |
49.0/44.3mm |
49/44mm |
| 65 X 90 mm ; 58.2 X 81 mm |
45.6/39.4mm |
45/39mm |
| 90 X 120 mm ; 83.5 X 114 mm |
21.3/17.0mm |
21/17mm |
| 4 X 5" ; 94.4 X 120.3 mm |
12.9/10.5mm |
12/10mm |
OPTICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Effective Focal Length (F') |
65.3mm |
65.3mm |
| Back Focal Length (S'F') |
44.3mm |
43.4mm |
| Principal Point Separation (HH') |
25.2mm |
26.9mm |
Source
Super-Angulon 5.6/75mm
Stats in Copal Shutter
OPTO-MECHANICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Lens elements, Groups |
8, 4 |
8, 4 |
| Shutter Size |
0+1 |
0 |
| Flange Focal Distance |
82.4mm |
84.8mm |
| Filter Mounting Thread |
M 67 X 0.75 |
M 67 X 0.75 |
| Weight (with shutter) |
371g |
380g |
| Overall Length |
77mm |
78mm |
IMAGE DATA
(with lens focused at infinity)
|
Coated |
MC |
| Recommended Format (negative) Size |
90 X 120 mm |
90 X 120 mm |
| Image Circle Diameter at f/22 |
198mm |
198mm |
| Angle of View at f/22 |
105 degrees |
105 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
|
| 56 X 72 mm ; 56 X 72 mm |
64.2/59.0mm |
|
| 65 X 90 mm ; 58.2 X 81 mm |
61.2/54.1mm |
61/54mm |
| 90 X 120 mm ; 83.5 X 114 mm |
39.2/32.8mm |
39/32mm |
| 4 X 5" ; 94.4 X 120.3 mm |
31.4/26.9mm |
30/26mm |
OPTICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Effective Focal Length (F') |
76mm |
75.7mm |
| Back Focal Length (S'F') |
51.2mm |
50.7mm |
| Principal Point Separation (HH') |
29.1mm |
29.6mm |
Source
Super-Angulon 8/90mm
Stats in Copal Shutter
OPTO-MECHANICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Lens elements, Groups |
6, 4 |
6, 4 |
| Shutter Size |
0+1 |
0 |
| Flange Focal Distance |
99.0mm |
98.8mm |
| Filter Mounting Thread |
M 67 X 0.75 |
M 67 X 0.75 |
| Weight (with shutter) |
363g |
390g |
| Overall Length |
78mm |
74.9mm |
IMAGE DATA
(with lens focused at infinity)
|
Coated |
MC |
| Recommended Format (negative) Size |
130 X 180 mm |
130 X 180 mm |
| Image Circle Diameter at f/22 |
216mm |
216mm |
| Angle of View at f/22 |
100 degrees |
100 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
_ |
| 5 X 7" ; 118.8 X 167 mm |
5.5/4mm |
5/4mm |
| 130 X 180 mm ; 122 X 172 mm |
4.3/3.1mm |
4/3mm |
OPTICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Effective Focal Length (F') |
90.7mm |
90.4mm |
| Back Focal Length (S'F') |
66.3mm |
67.0mm |
| Principal Point Separation (HH') |
30mm |
26.9mm |
Source
Super-Angulon 8/120mm
Stats in Copal Shutter
OPTO-MECHANICAL DATA
(with lens focused at infinity)
|
MC |
| Lens elements, Groups |
6, 4 |
| Shutter Size |
0 |
| Flange Focal Distance |
133.1mm |
| Filter Mounting Thread |
M82 X 0.75 |
| Weight (with shutter) |
700g |
| Overall Length |
96.1mm |
IMAGE DATA
(with lens focused at infinity)
|
MC |
| Recommended Format (negative) Size |
180 X 240 mm |
| Image Circle Diameter at f/22 |
288mm |
| Angle of View at f/22 |
100 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
91/81mm |
| 4 X 5" ; 94.4 X 120.3 mm |
83/76mm |
OPTICAL DATA
(with lens focused at infinity)
|
MC |
| Effective Focal Length (F') |
121.4mm |
| Back Focal Length (S'F') |
90.2mm |
| Principal Point Separation (HH') |
35.1mm |
Source
Super-Angulon 8/121mm
Stats in Copal Shutter
OPTO-MECHANICAL DATA
(with lens focused at infinity)
|
Coated |
| Lens elements, Groups |
6, 4 |
| Shutter Size |
0+1 |
| Flange Focal Distance |
134.2mm |
| Filter Mounting Thread |
M 77 X 0.75 |
| Weight (with shutter) |
516g |
| Overall Length |
104.5mm |
IMAGE DATA
(with lens focused at infinity)
|
Coated |
| Recommended Format (negative) Size |
180 X 240 mm |
| Image Circle Diameter at f/22 |
288.4mm |
| Angle of View at f/22 |
100 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
92/82mm |
| 4 X 5" ; 94.4 X 120.3 mm |
84.3/76.6mm |
OPTICAL DATA
(with lens focused at infinity)
|
Coated |
| Effective Focal Length (F') |
121.6mm |
| Back Focal Length (S'F') |
88.5mm |
| Principal Point Separation (HH') |
40mm |
Source
Super-Angulon 8/165mm
Stats in Copal Shutter
OPTO-MECHANICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Lens elements, Groups |
6, 4 |
6, 4 |
| Shutter Size |
3 |
3 |
| Flange Focal Distance |
180mm |
179.2mm |
| Filter Mounting Thread |
M 105 X 1 |
M 110 X 1 |
| Weight (with shutter) |
1550g |
1605g |
| Overall Length |
144mm |
135.5mm |
IMAGE DATA
(with lens focused at infinity)
|
Coated |
MC |
| Recommended Format (negative) Size |
240 X 300 mm |
240 X 300 mm |
| Image Circle Diameter at f/22 |
394mm |
395mm |
| Angle of View at f/22 |
100 degrees |
100 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
_ |
| 180 X 240 mm ; 172 X 232 mm |
73.2/61.2mm |
73/61mm |
| 8 X 10" ; 194.7 X 243.2 mm |
57.6/49.7mm |
56/48mm |
OPTICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Effective Focal Length (F') |
165mm |
165.7mm |
| Back Focal Length (S'F') |
120.4mm |
123.2mm |
| Principal Point Separation (HH') |
55mm |
47.8mm |
Source
Super-Angulon 8/210mm
Stats in Copal Shutter
OPTO-MECHANICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Lens elements, Groups |
6, 4 |
6, 4 |
| Shutter Size |
3 |
3 |
| Flange Focal Distance |
228mm |
229.4mm |
| Filter Mounting Thread |
M 127 X 1 |
M 135 X 1 |
| Weight (with shutter) |
2380g |
3065g |
| Overall Length |
180mm |
169.5mm |
IMAGE DATA
(with lens focused at infinity)
|
Coated |
MC |
| Recommended Format (negative) Size |
300 X 400 mm |
300 X 400 mm |
| Image Circle Diameter at f/22 |
500mm |
500mm |
| Angle of View at f/22 |
100 degrees |
100 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
_ |
| 180 X 240 mm ; 172 X 232 mm |
141/121mm |
136/120mm |
| 8 X 10" ; 194.7 X 243.2 mm |
121/109mm |
121/108mm |
OPTICAL DATA
(with lens focused at infinity)
|
Coated |
MC |
| Effective Focal Length (F') |
210mm |
210.2mm |
| Back Focal Length (S'F') |
153mm |
156.6mm |
| Principal Point Separation (HH') |
70mm |
60.5mm |
Symmar
The Symmar was originally introduced in 1920. It is a 6-element, 4-group, symmetric design with a 70° angle of coverage. The Symmar lenses are "convertable". Like most large format lenses they are constructed with two cells which fit into the front and back of a shutter. By removing one of these cells and using only half the lens, the user can create a lens with substantially longer focal length. The resulting longer focal length lens will produce a softer image that can be useful for portrait photography.
Source
Symmar 5.6/80mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 4 |
| Shutter Size |
0 |
| Flange Focal Distance |
75.7mm |
| Filter Mounting Thread |
M 40.5 X 0.5 |
| Weight (with shutter) |
230g |
| Overall Length |
36mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
56 X 72 mm |
| Image Circle Diameter at f/16 |
110.6mm |
| Angle of View at f/16 |
70 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
14.0/11.7mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
79mm |
| Back Focal Length (S'F') |
66.2mm |
| Principal Point Separation (HH') |
1.4mm |
Source
Symmar 5.6/100mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 4 |
| Shutter Size |
0 |
| Flange Focal Distance |
99.1mm |
| Filter Mounting Thread |
M 40.5 X 0.5 |
| Weight (with shutter) |
225g |
| Overall Length |
40mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
65 X 90 mm |
| Image Circle Diameter at f/16 |
143.2mm |
| Angle of View at f/16 |
70 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
37.0/33.0mm |
| 65 X 90 mm ; 58.2 X 81 mm |
33.4/28.1mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
102.3mm |
| Back Focal Length (S'F') |
85.9mm |
| Principal Point Separation (HH') |
1.8mm |
Source
Symmar 5.6/135mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 4 |
| Shutter Size |
0 |
| Flange Focal Distance |
131mm |
| Filter Mounting Thread |
M 40.5 X 0.5 |
| Weight (with shutter) |
230g |
| Overall Length |
44mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm |
| Image Circle Diameter at f/16 |
190mm |
| Angle of View at f/16 |
70 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
34.2/28.3mm |
| 4 X 5" ; 94.4 X 120.3 mm |
26.3/22.3mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
135.5mm |
| Back Focal Length (S'F') |
113mm |
| Principal Point Separation (HH') |
2.9mm |
Source
Symmar 5.6/150mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 4 |
| Shutter Size |
I+1 |
| Flange Focal Distance |
146.5mm |
| Filter Mounting Thread |
M 49 X 0.75 |
| Weight (with shutter) |
300g |
| Overall Length |
47mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm |
| Image Circle Diameter at f/16 |
210mm |
| Angle of View at f/16 |
70 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
46.4/39.3mm |
| 4 X 5" ; 94.4 X 120.3 mm |
38.8/33.6mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
150mm |
| Back Focal Length (S'F') |
125mm |
| Principal Point Separation (HH') |
3.3mm |
Source
Symmar 5.6/180mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 4 |
| Shutter Size |
I+1 |
| Flange Focal Distance |
178mm |
| Filter Mounting Thread |
M 58 X 0.75 |
| Weight (with shutter) |
400g |
| Overall Length |
56mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
130 X 180 mm |
| Image Circle Diameter at f/16 |
255mm |
| Angle of View at f/16 |
70 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 5 X 7" ; 118.8 X 167 mm |
35.6/28.1mm |
| 130 X 180 mm ; 122 X 172 mm |
31.8/24.8mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
182mm |
| Back Focal Length (S'F') |
154mm |
| Principal Point Separation (HH') |
4.0mm |
Source
Symmar 5.6/210mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 4 |
| Shutter Size |
I+1 |
| Flange Focal Distance |
205mm |
| Filter Mounting Thread |
M 58 X 0.75 |
| Weight (with shutter) |
480g |
| Overall Length |
64mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
130 X 180 mm |
| Image Circle Diameter at f/16 |
297mm |
| Angle of View at f/16 |
70 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 5 X 7" ; 118.8 X 167 mm |
63.3/52.5mm |
| 130 X 180 mm ; 122 X 172 mm |
60.0/49.4mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
212mm |
| Back Focal Length (S'F') |
176mm |
| Principal Point Separation (HH') |
4.6mm |
Source
Symmar 5.6/240mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 4 |
| Shutter Size |
II 5/2+3 |
| Flange Focal Distance |
236mm |
| Filter Mounting Thread |
M 67 X 0.75 |
| Weight (with shutter) |
725g |
| Overall Length |
75mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
180 X 140 mm |
| Image Circle Diameter at f/16 |
336mm |
| Angle of View at f/16 |
70 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 180 X 240 mm ; 172 X 232 mm |
35/28mm |
| 8 X 10" ; 194.7 X 243.2 mm |
18/15mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
240mm |
| Back Focal Length (S'F') |
201mm |
| Principal Point Separation (HH') |
4.7mm |
Source
Symmar 5.6/300mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 4 |
| Shutter Size |
3 |
| Flange Focal Distance |
284mm |
| Filter Mounting Thread |
M 86 X 1 |
| Weight (with shutter) |
1000g |
| Overall Length |
90mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
240 X 300 mm |
| Image Circle Diameter at f/16 |
402mm |
| Angle of View at f/16 |
70 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 5 X 7" ; 118.8 X 167 mm |
123/108mm |
| 130 X 180 mm ; 122 X 172 mm |
121/106mm |
| 180 X 240 mm ; 172 X 232 mm |
83.2/68mm |
| 8 X 10" ; 194.7 X 243.2 mm |
63/54mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
287mm |
| Back Focal Length (S'F') |
242mm |
| Principal Point Separation (HH') |
5.1mm |
Source
Symmar 5.6/360mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
6, 4 |
| Shutter Size |
5FS |
| Flange Focal Distance |
353.4mm |
| Filter Mounting Thread |
M 105 X 1 |
| Weight (with shutter) |
1725mm |
| Overall Length |
114mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
300 X 400 mm |
| Image Circle Diameter at f/16 |
500mm |
| Angle of View at f/16 |
70 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 180 X 240 mm ; 172 X 232 mm |
141/121mm |
| 8 X 10" ; 194.7 X 243.2 mm |
121/109mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
358mm |
| Back Focal Length (S'F') |
300mm |
| Principal Point Separation (HH') |
6.3mm |
Symmar-S
Source
Symmar-S 5.6/100mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Compur 0 |
Prontor Prof. 0 |
Copal 0 |
BK 0 |
| Lens Elements, Groups |
6, 4 |
6, 4 |
6, 4 |
6, 4 |
| Flange Focal Distance |
96.6mm |
94.1mm |
96.2mm |
96.6mm |
| Accessory Thread |
M 40.5 X 0.5 |
M 40.5 X 0.5 |
M 40.5 X 0.5 |
M 40.5 X 0.5 |
| Mounting Thread |
M 32.5 X 0.5 |
M 39 X 0.75 |
M 32.5 X 0.5 |
M 32.5 X 0.5 |
| Max. f/# |
45 |
45 |
45 |
45 |
| Weight |
185g |
250g |
185g |
150g |
| Overall Length |
38.5mm |
38.5mm |
38.5mm |
38.5mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
65 X 90 mm (2.5 X 3.5") |
65 X 90 mm (2.5 X 3.5") |
65 X 90 mm (2.5 X 3.5") |
65 X 90 mm (2.5 X 3.5") |
| Image Circle Diameter at f/22 |
143mm |
143mm |
143mm |
143mm |
| Angle of View at f/22 |
70 degrees |
70 degrees |
70 degrees |
70 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
|
|
|
| 2.25 X 3.25" ; 51 X 77 mm |
35/28mm |
35/28mm |
35/28mm |
35/28mm |
| 56 X 72 mm ; 56 X 72 mm (ideal) |
34/30mm |
34/30mm |
34/30mm |
34/30mm |
| 2.5 X 3.5" ; 56 X 80 mm |
31/26mm |
31/26mm |
31/26mm |
31/26mm |
| 65 X 90 mm ; 58 X 81 mm |
30/25mm |
30/25mm |
30/25mm |
30/25mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
102.1mm |
102.1mm |
102.1mm |
102.1mm |
| Back Focal Length (S'F') |
84.6mm |
84.6mm |
84.6mm |
84.6mm |
| Principal Point Separation (HH') |
-2.1mm |
-2.1mm |
-2.1mm |
-2.1mm |
Source
Symmar-S 5.6/120mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Compur 0 |
Prontor Prof. 0 |
Copal 0 |
BK 0 |
| Lens Elements, Groups |
6, 4 |
6, 4 |
6, 4 |
6, 4 |
| Flange Focal Distance |
118.3mm |
115.8mm |
117.9mm |
118.3mm |
| Accessory Thread |
M 49 X 0.75 |
M 49 X 0.75 |
M 49 X 0.75 |
M 49 X 0.75 |
| Mounting Thread |
M 32.5 X 0.5 |
M 39 X 0.75 |
M 32.5 X 0.5 |
M 32.5 X 0.5 |
| Max. f/# |
45 |
45 |
45 |
45 |
| Weight |
210g |
265g |
250g |
190g |
| Overall Length |
45mm |
45mm |
45mm |
45mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
90 X 120 mm (4 X 5") |
90 X 120 mm (4 X 5") |
90 X 120 mm (4 X 5") |
90 X 120 mm (4 X 5") |
| Image Circle Diameter at f/22 |
173mm |
173mm |
173mm |
173mm |
| Angle of View at f/22 |
70 degrees |
70 degrees |
70 degrees |
70 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
|
|
|
| 2.25 X 3.25" ; 51 X 77 mm |
52/44mm |
52/44mm |
52/44mm |
52/44mm |
| 56 X 72 mm; 56 X 72 mm (ideal) |
51/46mm |
51/46mm |
51/46mm |
51/46mm |
| 2.5 X 3.5" ; 56 X 80 mm |
49/42mm |
49/42mm |
49/42mm |
49/42mm |
| 65 X 90 mm ; 58 X 81 mm |
47/41mm |
47/41mm |
47/41mm |
47/41mm |
| 90 X 120 mm ; 83 X 114 mm |
24/19mm |
24/19mm |
24/19mm |
24/19mm |
| 4 X 5" ; 96 X 120 mm |
14/12mm |
14/12mm |
14/12mm |
14/12mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
123.4mm |
123.4mm |
123.4mm |
123.4mm |
| Back Focal Length (S'F') |
102.1mm |
102.1mm |
102.1mm |
102.1mm |
| Principal Point Separation (HH') |
-2.7mm |
-2.7mm |
-2.7mm |
-2.7mm |
Source
Symmar-S 5.6/135mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Compur 0 |
Prontor Prof. 0 |
Copal 0 |
BK 0 |
| Lens Elements, Groups |
6, 4 |
6, 4 |
6, 4 |
6, 4 |
| Flange Focal Distance |
128.9mm |
126.4mm |
128.5mm |
96.6mm |
| Accessory Thread |
49mm |
49mm |
49mm |
49mm |
| Mounting Thread |
M 32.5 X 0.5 |
M 39 X 0.75 |
M 32.5 X 0.5 |
M 32.5 X 0.5 |
| Max. f/# |
45 |
45 |
45 |
45 |
| Weight |
230g |
285g |
130g |
196g |
| Overall Length |
47.6mm |
47.6mm |
47.6mm |
47.6mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
90 X 120 mm (4 X 5") |
90 X 120 mm (4 X 5") |
90 X 120 mm (4 X 5") |
90 X 120 mm (4 X 5") |
| Image Circle Diameter at f/22 |
190mm |
190mm |
190mm |
190mm |
| Angle of View at f/22 |
70 degrees |
70 degrees |
70 degrees |
70 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
|
|
|
| 2.25 X 3.25" ; 51 X 77 mm |
61/53mm |
61/53mm |
61/53mm |
61/53mm |
| 56 X 72 mm; 56 X 72 mm (ideal) |
60/55mm |
60/55mm |
60/55mm |
60/55mm |
| 2.5 X 3.5" ; 56 X 80 mm |
58/51mm |
58/51mm |
58/51mm |
58/51mm |
| 65 X 90 mm ; 58 X 81 mm |
57/50mm |
57/50mm |
57/50mm |
57/50mm |
| 90 X 120 mm ; 83 X 114 mm |
35/29mm |
35/29mm |
35/29mm |
35/29mm |
| 4 X 5" ; 96 X 120 mm |
26/22mm |
26/22mm |
26/22mm |
26/22mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
135.4mm |
135.4mm |
135.4mm |
135.4mm |
| Back Focal Length (S'F') |
112.3mm |
112.3mm |
112.3mm |
112.3mm |
| Principal Point Separation (HH') |
-2.6mm |
-2.6mm |
-2.6mm |
-2.6mm |
Source
Symmar-S 5.6/150mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Compur 0 |
Compur 1 |
Prontor Prof. 0 |
Copal 0 |
BK 0 |
| Lens Elements, Groups |
6, 4 |
6, 4 |
6, 4 |
6, 4 |
6, 4 |
| Flange Focal Distance |
143.5mm |
142.2mm |
141.0mm |
143.1mm |
143.5mm |
| Accessory Thread |
M 58 X 0.75 |
M 58 X 0.75 |
M 58 X 0.75 |
M 58 X 0.75 |
M 58 X 0.75 |
| Mounting Thread |
M 32.5 X 0.5 |
M 39 X 0.75 |
M 39 X 0.75 |
M 32.5 X 0.5 |
M 32.5 X 0.5 |
| Max. f/# |
64 |
64 |
64 |
64 |
64 |
| Weight |
255g |
320g |
300g |
250g |
220g |
| Overall Length |
55mm |
55mm |
55mm |
55mm |
55mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
90 X 120 mm (4 X 5") |
90 X 120 mm (4 X 5") |
90 X 120 mm (4 X 5") |
90 X 120 mm (4 X 5") |
90 X 120 mm (4 X 5") |
| Image Circle Diameter at f/22 |
210mm |
210mm |
210mm |
210mm |
210mm |
| Angle of View at f/22 |
70 degrees |
70 degrees |
70 degrees |
70 degrees |
70 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
|
|
|
|
| 2.25 X 3.25" ; 51 X 77 mm |
72/63mm |
72/63mm |
72/63mm |
72/63mm |
72/63mm |
| 56 X 72 mm; 56 X 72 mm (ideal) |
70/65mm |
70/65mm |
70/65mm |
70/65mm |
70/65mm |
| 2.5 X 3.5" ; 56 X 80 mm |
69/61mm |
69/61mm |
69/61mm |
69/61mm |
69/61mm |
| 65 X 90 mm ; 58 X 81 mm |
68/60mm |
68/60mm |
68/60mm |
68/60mm |
68/60mm |
| 90 X 120 mm ; 83 X 114 mm |
47/39mm |
47/39mm |
47/39mm |
47/39mm |
47/39mm |
| 4 X 5" ; 96 X 120 mm |
38/33mm |
38/33mm |
38/33mm |
38/33mm |
38/33mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
150.3mm |
150.3mm |
150.3mm |
150.3mm |
150.3mm |
| Back Focal Length (S'F') |
125.0mm |
125.0mm |
125.0mm |
125.0mm |
125.0mm |
| Principal Point Separation (HH') |
-2.9mm |
-2.9mm |
-2.9mm |
-2.9mm |
-2.9mm |
Source
Symmar-S 5.6/180mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Compur 1 |
Prontor Prof. 1 |
Copal 1 |
BK 1 |
| Lens Elements, Groups |
6, 4 |
6, 4 |
6, 4 |
6, 4 |
| Flange Focal Distance |
171.2mm |
169.8mm |
171.3mm |
171.2mm |
| Accessory Thread |
M 67 X 0.75 |
M 67 X 0.75 |
M 67 X 0.75 |
M 67 X 0.75 |
| Mounting Thread |
M 39 X 0.75 |
M 39 X 0.75 |
M 39 X 0.75 |
M 39 X 0.75 |
| Max. f/# |
64 |
64 |
64 |
64 |
| Weight |
495g |
470g |
450g |
405g |
| Overall Length |
64mm |
64mm |
64mm |
64mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
130 X 180 mm (5 X 7") |
130 X 180 mm (5 X 7") |
130 X 180 mm (5 X 7") |
130 X 180 mm (5 X 7") |
| Image Circle Diameter at f/22 |
252mm |
252mm |
252mm |
252mm |
| Angle of View at f/22 |
70 degrees |
70 degrees |
70 degrees |
70 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
|
|
|
| 2.5 X 3.5" ; 56 X 80 mm |
91/83mm |
91/83mm |
91/83mm |
91/83mm |
| 65 X 90 mm ; 58 X 81 mm |
90/82mm |
90/82mm |
90/82mm |
90/82mm |
| 90 X 120 mm ; 83 X 114 mm |
71/62mm |
71/62mm |
71/62mm |
71/62mm |
| 4 X 5" ; 96 X 120 mm |
63/56mm |
63/56mm |
63/56mm |
63/56mm |
| 5 X 7" ; 121 X 170 mm |
33/26mm |
33/26mm |
33/26mm |
33/26mm |
| 130 X 180 mm ; 122 X 171 mm |
32/25mm |
32/25mm |
32/25mm |
32/25mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
180.0mm |
180.0mm |
180.0mm |
180.0mm |
| Back Focal Length (S'F') |
149.5mm |
149.5mm |
149.5mm |
149.5mm |
| Principal Point Separation (HH') |
-3.4mm |
-3.4mm |
-3.4mm |
-3.4mm |
Source
Symmar-S 5.6/210mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Compur 1 |
Prontor Prof. 1 |
Copal 1 |
BK 1 |
| Lens Elements, Groups |
6, 4 |
6, 4 |
6, 4 |
6, 4 |
| Flange Focal Distance |
200.9mm |
199.5mm |
201.0mm |
200.9mm |
| Accessory Thread |
M 77 X 0.75 |
M 77 X 0.75 |
M 77 X 0.75 |
M 77 X 0.75 |
| Mounting Thread |
M 39 X 0.75 |
M 39 X 0.75 |
M 39 X 0.75 |
M 39 X 0.75 |
| Max. f/# |
64 |
64 |
64 |
64 |
| Weight |
590g |
570g |
550g |
480g |
| Overall Length |
73mm |
73mm |
73mm |
73mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
130 X 180 mm (5 X 7") |
130 X 180 mm (5 X 7") |
130 X 180 mm (5 X 7") |
130 X 180 mm (5 X 7") |
| Image Circle Diameter at f/22 |
294mm |
294mm |
294mm |
294mm |
| Angle of View at f/22 |
70 degrees |
70 degrees |
70 degrees |
70 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
|
|
|
| 90 X 120 mm ; 83 X 114 mm |
71/62mm |
71/62mm |
71/62mm |
71/62mm |
| 4 X 5" ; 96 X 120 mm |
63/56mm |
63/56mm |
63/56mm |
63/56mm |
| 5 X 7" ; 121 X 170 mm |
33/26mm |
33/26mm |
33/26mm |
33/26mm |
| 130 X 180 mm ; 122 X 171 mm |
32/25mm |
32/25mm |
32/25mm |
32/25mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
209.9mm |
209.9mm |
209.9mm |
209.9mm |
| Back Focal Length (S'F') |
174.7mm |
174.7mm |
174.7mm |
174.7mm |
| Principal Point Separation (HH') |
-4.0mm |
-4.0mm |
-4.0mm |
-4.0mm |
Source
Symmar-S 5.6/240mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Compur 3 |
Prontor Prof. 3 |
Copal 3 |
BK 3 |
| Lens Elements, Groups |
6, 4 |
6, 4 |
6, 4 |
6, 4 |
| Flange Focal Distance |
229.0mm |
227.9mm |
229.0mm |
229.0mm |
| Accessory Thread |
M 86 X 1 |
M 86 X 1 |
M 86 X 1 |
M 86 X 1 |
| Mounting Thread |
M 62 X 0.75 |
M 62 X 0.75 |
M 62 X 0.75 |
M 62 X 0.75 |
| Max. f/# |
64 |
64 |
64 |
64 |
| Weight |
950g |
1000g |
895g |
725g |
| Overall Length |
83.5mm |
83.5mm |
83.5mm |
83.5mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
180 X 240 mm (8 X 10") |
180 X 240 mm (8 X 10") |
180 X 240 mm (8 X 10") |
180 X 240 mm (8 X 10") |
| Image Circle Diameter at f/22 |
337mm |
337mm |
337mm |
337mm |
| Angle of View at f/22 |
70 degrees |
70 degrees |
70 degrees |
70 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
|
|
|
| 4 X 5" ; 96 X 120 mm |
109/102mm |
109/102mm |
109/102mm |
109/102mm |
| 5 X 7" ; 121 X 170 mm |
85/72mm |
85/72mm |
85/72mm |
85/72mm |
| 130 X 180 mm ; 122 X 171 mm |
84/72mm |
84/72mm |
84/72mm |
84/72mm |
| 180 X 240 mm ; 171 X 231 mm |
37/30mm |
37/30mm |
37/30mm |
37/30mm |
| 8 X 10" ; 194 X 245 mm |
19/15mm |
19/15mm |
19/15mm |
19/15mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
240.8mm |
240.8mm |
240.8mm |
240.8mm |
| Back Focal Length (S'F') |
200.4mm |
200.4mm |
200.4mm |
200.4mm |
| Principal Point Separation (HH') |
-4.5mm |
-4.5mm |
-4.5mm |
-4.5mm |
Source
Symmar-S 5.6/300mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Compur 3 |
Prontor Prof. 3 |
Copal 3 |
BK 3 |
| Lens Elements, Groups |
6, 4 |
6, 4 |
6, 4 |
6, 4 |
| Flange Focal Distance |
280.0mm |
278.9mm |
280.0mm |
280.0mm |
| Accessory Thread |
M 105 X 1 |
M 105 X 1 |
M 105 X 1 |
M 105 X 1 |
| Mounting Thread |
M 62 x 0.75 |
M 62 x 0.75 |
M 62 x 0.75 |
M 62 x 0.75 |
| Max. f/# |
64 |
64 |
64 |
45 |
| Weight |
1215g |
1260g |
1160g |
970g |
| Overall Length |
101.5mm |
101.5mm |
101.5mm |
101.5mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
240 X 300 mm (8 X 10") |
240 X 300 mm (8 X 10") |
240 X 300 mm (8 X 10") |
240 X 300 mm (8 X 10") |
| Image Circle Diameter at f/22 |
411mm |
411mm |
411mm |
411mm |
| Angle of View at f/22 |
70 degrees |
70 degrees |
70 degrees |
70 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
|
|
|
| 5 X 7" ; 121 X 170 mm |
127/111mm |
127/111mm |
127/111mm |
127/111mm |
| 130 X 180 mm ; 122 X 171 mm |
126/111mm |
126/111mm |
126/111mm |
126/111mm |
| 180 X 240 mm ; 171 X 231 mm |
84/71mm |
84/71mm |
84/71mm |
84/71mm |
| 8 X 10" ; 194 X 245 mm |
68/59mm |
68/59mm |
68/59mm |
68/59mm |
| 240 X 300 mm ; 230 X 290 mm |
31/25mm |
31/25mm |
31/25mm |
31/25mm |
| 10 X 12" ; 245 X 295 mm |
21/18mm |
21/18mm |
21/18mm |
21/18mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
293.8mm |
293.8mm |
293.8mm |
293.8mm |
| Back Focal Length (S'F') |
244.1mm |
244.1mm |
244.1mm |
244.1mm |
| Principal Point Separation (HH') |
-5.4mm |
-5.4mm |
-5.4mm |
-5.4mm |
Source
Symmar-S 6.8/360mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Compur 3 |
Prontor Prof. 3 |
Copal 3 |
BK 3 |
| Lens Elements, Groups |
6, 4 |
6, 4 |
6, 4 |
6, 4 |
| Flange Focal Distance |
335.8mm |
334.7mm |
335.8mm |
335.8mm |
| Accessory Thread |
M 120 X 1 |
M 120 X 1 |
M 120 X 1 |
M 120 X 1 |
| Mounting Thread |
M 62 x 0.75 |
M 62 x 0.75 |
M 62 x 0.75 |
M 62 x 0.75 |
| Max. f/# |
64 |
64 |
64 |
45 |
| Weight |
1545g |
1590g |
1490g |
1320g |
| Overall Length |
112mm |
112mm |
112mm |
112mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
240 X 300 mm (10 X 12") |
240 X 300 mm (10 X 12") |
240 X 300 mm (10 X 12") |
240 X 300 mm (10 X 12") |
| Image Circle Diameter at f/22 |
491mm |
491mm |
491mm |
491mm |
| Angle of View at f/22 |
70 degrees |
70 degrees |
70 degrees |
70 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
|
|
|
| 180 X 240 mm ; 171 X 231 mm |
131/115mm |
131/115mm |
131/115mm |
131/115mm |
| 8 X 10" ; 194 X 245 mm |
116/103mm |
116/103mm |
116/103mm |
116/103mm |
| 240 X 300 mm ; 230 X 290 mm |
83/72mm |
83/72mm |
83/72mm |
83/72mm |
| 10 X 12" ; 245 X 295 mm |
74/65mm |
74/65mm |
74/65mm |
74/65mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
350.5mm |
350.5mm |
350.5mm |
350.5mm |
| Back Focal Length (S'F') |
292.5mm |
292.5mm |
292.5mm |
292.5mm |
| Principal Point Separation (HH') |
-5.5mm |
-5.5mm |
-5.5mm |
-5.5mm |
Source
Symmar-S 8.4/480mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Copal 3 |
| Lens Elements, Groups |
6, 4 |
| Flange Focal Distance |
455.2mm |
| Accessory Thread |
M 105 X 1 |
| Mounting Thread |
M 62 X 0.75 |
| Max. f/# |
64 |
| Weight |
1700g |
| Overall Length |
128.1mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
240 X 300 mm (10 X 12") |
| Image Circle Diameter at f/22 |
500mm |
| Angle of View at f/22 |
56 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
| 180 X 240 mm ; 171 X 231 mm |
136/119mm |
| 8 X 10" ; 194 X 245 mm |
121/108mm |
| 240 X 300 mm ; 230 X 290 mm |
88/77mm |
| 10 X 12" ; 245 X 295 mm |
79/70mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
470.5mm |
| Back Focal Length (S'F') |
400.8mm |
| Principal Point Separation (HH') |
-5.5mm |
Source
Symmar-S 9.4/480mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Available Mounts |
Compur 3 |
Prontor Prof. 3 |
BK 3 |
| Lens Elements, Groups |
6, 4 |
6, 4 |
6, 4 |
| Flange Focal Distance |
455.2mm |
454.1mm |
455.2mm |
| Accessory Thread |
M 105 X 1 |
M 105 X 1 |
M 105 X 1 |
| Mounting Thread |
M 62 X 0.75 |
M 62 X 0.75 |
M 62 X 0.75 |
| Max. f/# |
64 |
64 |
45 |
| Weight |
1700g |
1740g |
1460g |
| Overall Length |
128.1mm |
128.1mm |
128.1mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format Size |
240 X 300 mm (10 X 12") |
240 X 300 mm (10 X 12") |
240 X 300 mm (10 X 12") |
| Image Circle Diameter at f/22 |
500mm |
500mm |
500mm |
| Angle of View at f/22 |
56 degrees |
56 degrees |
56 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
|
|
|
| 180 X 240 mm ; 171 X 231 mm |
136/119mm |
136/119mm |
136/119mm |
| 8 X 10" ; 194 X 245 mm |
121/108mm |
121/108mm |
121/108mm |
| 240 X 300 mm ; 230 X 290 mm |
88/77mm |
88/77mm |
88/77mm |
| 10 X 12" ; 245 X 295 mm |
79/70mm |
79/70mm |
79/70mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
470.5mm |
470.5mm |
470.5mm |
| Back Focal Length (S'F') |
400.8mm |
400.8mm |
400.8mm |
| Principal Point Separation (HH') |
-5.5mm |
-5.5mm |
-5.5mm |
Tele-Arton
The Tele-Arton is a telephoto design. Their short flange focal length allows the use of long lenses on cameras with short bellows extension, such as the "technical cameras". Earlier f/4 and f/5.5 models are 5 elements in 4 groups. The 250 mm f/5.6 is a modern multicoated 5-element, 5-group lens. All models have a 35° angle of coverage.
Source
Tele-Arton 4/180mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
I+1 |
| Flange Focal Distance |
102.4mm |
| Filter Mounting Thread |
M 67 X 0.75 |
| Weight (with shutter) |
700g |
| Overall Length |
97mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
65 X 90 mm |
| Image Circle Diameter at f/16 |
110mm |
| Angle of View at f/16 |
35 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
13.6/11.3mm |
| 65 X 90 mm ; 58.2 X 81 mm |
8.1/6.1mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
176mm |
| Back Focal Length (S'F') |
77mm |
| Principal Point Separation (HH') |
26.8mm |
Source
Tele-Arton 5.5/180mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
0 |
| Flange Focal Distance |
115.5mm |
| Filter Mounting Thread |
M 40.5 X 0.5 |
| Weight (with shutter) |
315g |
| Overall Length |
77mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
65 X 90 mm |
| Image Circle Diameter at f/16 |
110mm |
| Angle of View at f/16 |
35 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
15.5/13.1mm |
| 65 X 90 mm ; 58.2 X 81 mm |
10.3/7.9mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
180mm |
| Back Focal Length (S'F') |
74mm |
| Principal Point Separation (HH') |
38.5mm |
Source
Tele-Arton 5.5/240mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
II 5/2+3 or *I+1 |
| Flange Focal Distance |
158mm or *146mm |
| Filter Mounting Thread |
M 49 X 0.75 |
| Weight (with shutter) |
800g or *370g |
| Overall Length |
103mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm or *65 X 90 mm |
| Image Circle Diameter at f/16 |
152mm or *130mm |
| Angle of View at f/16 |
35 or *30 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
26.1/22.6mm |
| 65 X 90 mm ; 58.2 X 81 mm |
21.7/17.6mm |
| *90 X 120 mm ; 83.5 X 114 mm |
*9.3/7.1mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
241mm |
| Back Focal Length (S'F') |
99.3mm |
| Principal Point Separation (HH') |
49.2mm |
Source
Tele-Arton 5.5/270mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
I+1 |
| Flange Focal Distance |
152mm |
| Filter Mounting Thread |
M 77 X 0.75 |
| Weight (with shutter) |
560g |
| Overall Length |
97mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm |
| Image Circle Diameter at f/16 |
178mm |
| Angle of View at f/16 |
37 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
21.3/17.0mm |
| 4 X 5" ; 94.4 X 120.3 mm |
12.8/10.5mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
265mm |
| Back Focal Length (S'F') |
126mm |
| Principal Point Separation (HH') |
54mm |
Source
Tele-Arton 5.5/360mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
3 |
| Flange Focal Distance |
209mm |
| Filter Mounting Thread |
M 95 X 1 |
| Weight (with shutter) |
960g |
| Overall Length |
124mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
130 X 180 mm |
| Image Circle Diameter at f/16 |
264mm |
| Angle of View at f/16 |
41 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 5 X 7" ; 118.8 X 167 mm |
43/34mm |
| 130 X 180 mm ; 122 X 172 mm |
40/31mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
353mm |
| Back Focal Length (S'F') |
168mm |
| Principal Point Separation (HH') |
74.3mm |

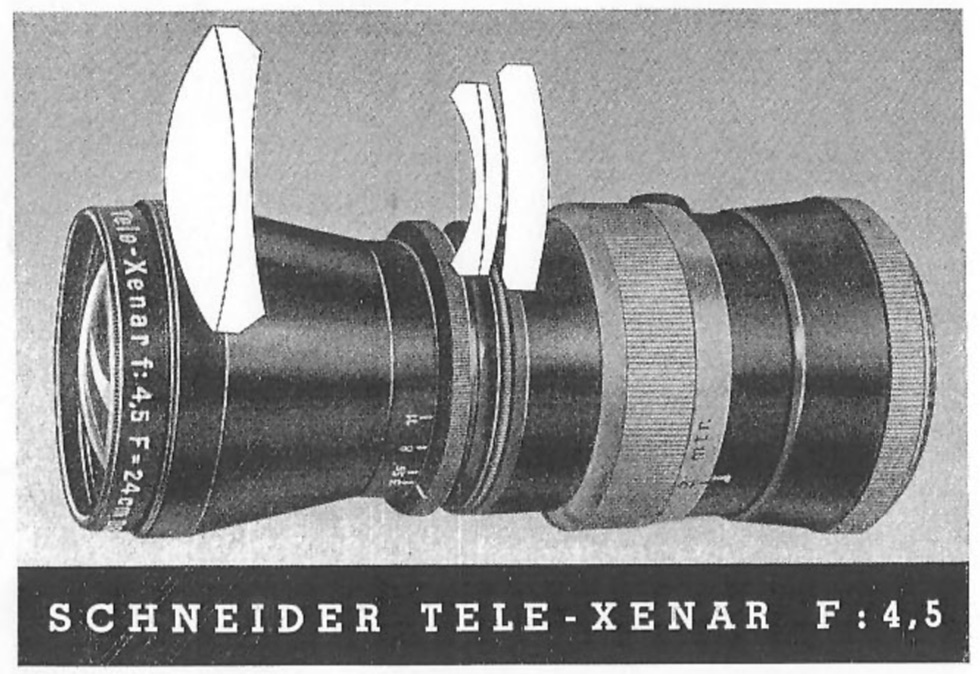

Tele-Xenar
Tele-Xenar lenses are 4-element, 2-group telephoto lenses. As with all telephoto lenses, they have a short flange focal length, allowing the use of long lenses even on cameras with limited bellows draw. The 360mm and 500mm focal lengths feature 35° of coverage. The 1000 mm lenses, by comparison, give only an 18° angle of coverage, but require even less bellows draw than other telephoto designs (slightly more than 1/2 the effective focal length, as opposed to about 2/3 for a normal tele lens). All of the Tele-Xenars will cover the 5×7 inch format.
Source
Tele-Xenar 5.5/360mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 2 |
| Shutter Size |
III 7+3 |
| Flange Focal Distance |
214mm |
| Filter Mounting Thread |
M 67 X 0.75 |
| Weight (with shutter) |
670g |
| Overall Length |
110mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
130 X 180 mm |
| Image Circle Diameter at f/16 |
230mm |
| Angle of View at f/16 |
35 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 5 X 7" ; 118.8 X 167 mm |
13.7/10.2mm |
| 130 X 180 mm ; 122 X 172 mm |
9.2/6.7mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
366mm |
| Back Focal Length (S'F') |
184mm |
| Principal Point Separation (HH') |
68.6mm |
Source
Tele-Xenar 5.5/500mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 2 |
| Shutter Size |
V/12+5FS |
| Flange Focal Distance |
312mm |
| Filter Mounting Thread |
M 105 X 1 |
| Weight (with shutter) |
1650g |
| Overall Length |
155mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
180 X 240 mm |
| Image Circle Diameter at f/16 |
312mm |
| Angle of View at f/16 |
35 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 180 X 240 mm ; 172 X 232 mm |
18.3/14.1mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
497mm |
| Back Focal Length (S'F') |
250mm |
| Principal Point Separation (HH') |
97.7mm |
Source
Tele-Xenar 8/1000mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 2 |
| Shutter Size |
_ |
| Flange Focal Distance |
540mm |
| Filter Mounting Thread |
M 127 X 1 |
| Weight (with shutter) |
_ |
| Overall Length |
272mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
180 X 240 mm |
| Image Circle Diameter at f/16 |
312mm |
| Angle of View at f/16 |
18 degrees |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
970mm |
| Back Focal Length (S'F') |
523mm |
| Principal Point Separation (HH') |
142mm |
Source
Tele-Xenar 10/1000mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 2 |
| Shutter Size |
5FS |
| Flange Focal Distance |
540mm |
| Filter Mounting Thread |
M 127 X 1 |
| Weight (with shutter) |
3000g |
| Overall Length |
272mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
180 X 240 mm |
| Image Circle Diameter at f/16 |
312mm |
| Angle of View at f/16 |
18 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
_ |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
970mm |
| Back Focal Length (S'F') |
523mm |
| Principal Point Separation (HH') |
142mm |
Xenar
The Schneider lenses of the Xenar series are world-renowned as standard lenses used by professional photographers in the press, advertising, and portrait fields.
Designed as four-element, three-component systems, they give brilliant pictures in full, natural color. Their carefully balanced correction ensures outstanding image quality. As a result, reasonably priced and versatile Xenar lenses are essential elements for any professional photographer.
Xenar lenses are 4 element "Tessar type" lenses, originally introduced in in 1919. They offer good image quality in a compact lens with coverage of 60-62°. This classic design stood the test of time and was produced until the late 1990's.
Source
Xenar 3.5/75mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
00 |
| Flange Focal Distance |
71.3mm |
| Filter Mounting Thread |
_ |
| Weight (with shutter) |
90g |
| Overall Length |
26mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
60 X 60 mm |
| Image Circle Diameter at f/16 |
85mm |
| Angle of View at f/16 |
58 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
75.8mm |
| Back Focal Length (S'F') |
65.5mm |
| Principal Point Separation (HH') |
0.7mm |
Source
Xenar 3.5/100mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
0 |
| Flange Focal Distance |
96.2mm |
| Filter Mounting Thread |
M 40.5 X 0.5 |
| Weight (with shutter) |
225g |
| Overall Length |
37.7mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
65 X 90 mm |
| Image Circle Diameter at f/16 |
116mm |
| Angle of View at f/16 |
60 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
17.5/14.8mm |
| 65 X 90 mm ; 58.2 X 81 mm |
14.9/9.7mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
101mm |
| Back Focal Length (S'F') |
84.5mm |
| Principal Point Separation (HH') |
1.9mm |
Source
Xenar 4.5/105mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
0 |
| Flange Focal Distance |
99.8mm |
| Filter Mounting Thread |
M 40.5 X 0.5 |
| Weight (with shutter) |
190g |
| Overall Length |
30.4mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
65 X 90 mm |
| Image Circle Diameter at f/16 |
127mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
23.1/19.9mm |
| 65 X 90 mm ; 58.2 X 81 mm |
18.5/14.8mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
106mm |
| Back Focal Length (S'F') |
93.1mm |
| Principal Point Separation (HH') |
1.0mm |
Source
Xenar 4.5/135mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
l+1 |
| Flange Focal Distance |
126mm |
| Filter Mounting Thread |
M 40.5 X 0.5 |
| Weight (with shutter) |
245g |
| Overall Length |
34mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm |
| Image Circle Diameter at f/16 |
161mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
15.1/11.8mm |
| 4 X 5" ; 94.4 X 120.3 mm |
6.3/5.1mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
134mm |
| Back Focal Length (S'F') |
116.7mm |
| Principal Point Separation (HH') |
1.1mm |
Source
Xenar 4.7/135mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
0 |
| Flange Focal Distance |
126mm |
| Filter Mounting Thread |
M 40.5 X 0.5 |
| Weight (with shutter) |
155g |
| Overall Length |
34mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm |
| Image Circle Diameter at f/16 |
161mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
15.1/11.8mm |
| 4 X 5" ; 94.4 X 120.3 mm |
6.3/5.1mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
134mm |
| Back Focal Length (S'F') |
116.7mm |
| Principal Point Separation (HH') |
1.1mm |
Source
Xenar 4.5/150mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
l+1 |
| Flange Focal Distance |
144mm |
| Filter Mounting Thread |
M 40.5 X 0.5 |
| Weight (with shutter) |
250g |
| Overall Length |
38.5mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm |
| Image Circle Diameter at f/16 |
180mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
27.9/22.7mm |
| 4 X 5" ; 94.4 X 120.3 mm |
19.8/16.5mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
150mm |
| Back Focal Length (S'F') |
131.2mm |
| Principal Point Separation (HH') |
1.5mm |
Source
Xenar 4.5/180mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
ll 6/2+3 |
| Flange Focal Distance |
174mm |
| Filter Mounting Thread |
M 49 X 0.75 |
| Weight (with shutter) |
410g |
| Overall Length |
44mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
100 X 150 mm |
| Image Circle Diameter at f/16 |
217mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
50.6/43.2mm |
| 4 X 5" ; 94.4 X 120.3 mm |
43.1/37.5mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
181mm |
| Back Focal Length (S'F') |
159mm |
| Principal Point Separation (HH') |
1.8mm |
Source
Xenar 4.5/210mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
3 |
| Flange Focal Distance |
201mm |
| Filter Mounting Thread |
M 58 X 0.75 |
| Weight (with shutter) |
550g |
| Overall Length |
52.5mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
130 X 180 mm |
| Image Circle Diameter at f/16 |
253mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 5 X 7" ; 188.8 X 167 mm |
34.9/27.5mm |
| 130 X 180 mm ; 122 X 172 mm |
31.1/24.2mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
211mm |
| Back Focal Length (S'F') |
186mm |
| Principal Point Separation (HH') |
2.1mm |
Source
Xenar 4.5/240mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
IV/10+5FS |
| Flange Focal Distance |
228mm |
| Filter Mounting Thread |
M 67 X 0.75 |
| Weight (with shutter) |
780g |
| Overall Length |
59mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
130 X 180 mm |
| Image Circle Diameter at f/16 |
282mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 5 X 7" ; 188.8 X 167 mm |
54.2/44.3mm |
| 130 X 180 mm ; 122 X 172 mm |
50.7/41.1mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
235mm |
| Back Focal Length (S'F') |
214mm |
| Principal Point Separation (HH') |
3.6mm |
Source
Xenar 4.5/300mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
V/12+5FS |
| Flange Focal Distance |
289mm |
| Filter Mounting Thread |
M 82 X 0.75 |
| Weight (with shutter) |
1085g |
| Overall Length |
73mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
180 X 240 mm |
| Image Circle Diameter at f/16 |
364mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 180 X 240 mm ; 172 X 232 mm |
54.2/44.4mm |
| 8 X 10" ; 194.7 X 243.2 mm |
38.0/32.1mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
303mm |
| Back Focal Length (S'F') |
269mm |
| Principal Point Separation (HH') |
5.0mm |
Source
Xenar 4.5/360mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
_ |
| Flange Focal Distance |
336mm |
| Filter Mounting Thread |
M 102 X 1 |
| Weight (with shutter) |
_ |
| Overall Length |
81mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
240 X 300 mm |
| Image Circle Diameter at f/16 |
432mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 180 X 240 mm ; 172 X 232 mm |
96.2/82.1mm |
| 8 X 10" ; 194.7 X 243.2 mm |
81.1/71.2mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
360mm |
| Back Focal Length (S'F') |
319mm |
| Principal Point Separation (HH') |
5.4mm |
Source
Xenar 4.5/420mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
_ |
| Flange Focal Distance |
401mm |
| Filter Mounting Thread |
M 120 X 1 |
| Weight (with shutter) |
_ |
| Overall Length |
87mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
240 X 300 mm |
| Image Circle Diameter at f/16 |
506mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 180 X 240 mm ; 172 X 232 mm |
144/124mm |
| 8 X 10" ; 194.7 X 243.2 mm |
125/112mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
422mm |
| Back Focal Length (S'F') |
376mm |
| Principal Point Separation (HH') |
6.4mm |
Source
Xenar 4.5/480mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
_ |
| Flange Focal Distance |
458mm |
| Filter Mounting Thread |
M 120 X 1 |
| Weight (with shutter) |
_ |
| Overall Length |
100mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
240 X 300 mm |
| Image Circle Diameter at f/16 |
580mm |
| Angle of View at f/16 |
62 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 180 X 240 mm ; 172 X 232 mm |
185/162mm |
| 8 X 10" ; 194.7 X 243.2 mm |
166/152mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
483mm |
| Back Focal Length (S'F') |
429mm |
| Principal Point Separation (HH') |
7.3mm |
Source
Source
Xenar 5.6/150mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
_ |
| Flange Focal Distance |
142.6mm |
| Filter Mounting Thread |
M 34 X 0.5 |
| Weight (with shutter) |
170g |
| Overall Length |
35.5mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm |
| Image Circle Diameter at f/22 |
173mm |
| Angle of View at f/22 |
60 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83 X 114 mm |
24/19mm |
| 4 X 5" ; 96 X 120 mm |
14/12mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
149.9mm |
| Back Focal Length (S'F') |
131.2mm |
| Principal Point Separation (HH') |
0.6mm |
Source
Xenar 5.6/300mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
_ |
| Flange Focal Distance |
289.5mm |
| Filter Mounting Thread |
M 67 X 0.75 |
| Weight (with shutter) |
920g |
| Overall Length |
68.2mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
180 X 240 mm |
| Image Circle Diameter at f/22 |
347mm |
| Angle of View at f/22 |
60 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
| 5 X 7" ; 121 X 170 mm |
30/24mm |
| 130 X 180 mm ; 122 X 171 mm |
29/23mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
300mm |
| Back Focal Length (S'F') |
263.8mm |
| Principal Point Separation (HH') |
1.7mm |
Source
Xenar 6.1/210mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
4, 3 |
| Shutter Size |
_ |
| Flange Focal Distance |
206mm |
| Filter Mounting Thread |
M 46 X 0.75 |
| Weight (with shutter) |
375g |
| Overall Length |
49.7mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
130 X 180 mm |
| Image Circle Diameter at f/22 |
249mm |
| Angle of View at f/22 |
60 degrees |
| Lens Displacement at f/22 (vertical/horizontal) |
_ |
| 180 X 240 mm ; 171 X 231 mm |
44/35mm |
| 8 X 10" ; 194 X 245 mm |
26/21mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
215mm |
| Back Focal Length (S'F') |
188.8mm |
| Principal Point Separation (HH') |
1.2mm |
Xenotar
A 5-element, 4-group design, giving a 60° angle of coverage. These are fast lenses compared to other lens designs of similar focal length, but with somewhat less coverage.
Source
Xenotar 2.8/80mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
I+1 |
| Flange Focal Distance |
73.5mm |
| Filter Mounting Thread |
M 49 X 0.75 |
| Weight (with shutter) |
230g |
| Overall Length |
40.5mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
56 X 72 mm |
| Image Circle Diameter at f/16 |
91mm |
| Angle of View at f/16 |
59 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
_ |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
80.4mm |
| Back Focal Length (S'F') |
60mm |
| Principal Point Separation (HH') |
-6.3mm |
Source
Xenotar 2.8/100mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
I+1 |
| Flange Focal Distance |
95.3mm |
| Filter Mounting Thread |
M 58 X 0.75 |
| Weight (with shutter) |
360g |
| Overall Length |
49.2mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
65 X 90 mm |
| Image Circle Diameter at f/16 |
117mm |
| Angle of View at f/16 |
60 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
18.1/15.4mm |
| 65 X 90 mm ; 58.2 X 81 mm |
13.1/10.2mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
101.4mm |
| Back Focal Length (S'F') |
75.5mm |
| Principal Point Separation (HH') |
-8.0mm |
Source
Xenotar 2.8/150mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
II 5/2+3 |
| Flange Focal Distance |
139mm |
| Filter Mounting Thread |
M 77 X 0.75 |
| Weight (with shutter) |
875g |
| Overall Length |
76.7mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm |
| Image Circle Diameter at f/16 |
160mm |
| Angle of View at f/16 |
56 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
14.4/11.2mm |
| 4 X 5" ; 94.4 X 120.3 mm |
5.5/4.4mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
149.5mm |
| Back Focal Length (S'F') |
108mm |
| Principal Point Separation (HH') |
-15.2mm |
Source
Xenotar 3.5/75mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
00 |
| Flange Focal Distance |
69.4mm |
| Filter Mounting Thread |
_ |
| Weight (with shutter) |
100g |
| Overall Length |
30.3mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
60 X 60 mm |
| Image Circle Diameter at f/16 |
85mm |
| Angle of View at f/16 |
59 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 72 mm ; 56 X 72 mm |
_ |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
75mm |
| Back Focal Length (S'F') |
58.5mm |
| Principal Point Separation (HH') |
-1.0mm |
Source
Xenotar 3.5/135mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
I+1 |
| Flange Focal Distance |
125.3mm |
| Filter Mounting Thread |
M 58 X 0.75 |
| Weight (with shutter) |
380g |
| Overall Length |
50mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
90 X 120 mm |
| Image Circle Diameter at f/16 |
153mm |
| Angle of View at f/16 |
59 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 90 X 120 mm ; 83.5 X 114 mm |
903/7.1mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
135.5mm |
| Back Focal Length (S'F') |
105.2mm |
| Principal Point Separation (HH') |
-1.7mm |
Source
Xenotar 4/100mm
OPTO-MECHANICAL DATA
(with lens focused at infinity)
| Lens elements, Groups |
5, 4 |
| Shutter Size |
0 |
| Flange Focal Distance |
87.4mm |
| Filter Mounting Thread |
M 49 X 0.75 |
| Weight (with shutter) |
230g |
| Overall Length |
47.7mm |
IMAGE DATA
(with lens focused at infinity)
| Recommended Format (negative) Size |
56 X 72 mm |
| Image Circle Diameter at f/16 |
110mm |
| Angle of View at f/16 |
60 degrees |
| Lens Displacement at f/16 (vertical/horizontal) |
_ |
| 56 X 2 mm ; 56 X 72 mm |
13.6/11.3mm |
OPTICAL DATA
(with lens focused at infinity)
| Effective Focal Length (F') |
95.9mm |
| Back Focal Length (S'F') |
71.2mm |
| Principal Point Separation (HH') |
-7.3mm |
APO ATAR PDF
Super Symmar HM PDF
Symmar-S Group Data
Tele Xenar 1938 Leaflet
Xenar Data
